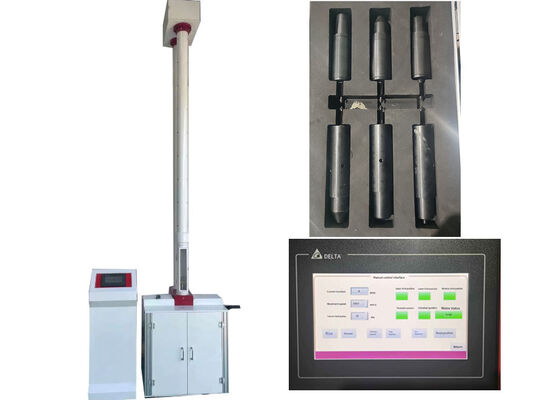

Drop Hammer Test Equipment
Professional impact testing equipment designed with comprehensive safety features and intuitive user controls to facilitate efficient impact testing operations.
Applications
The Drop Hammer Test Equipment offers extensive practical applications, fully compliant with ISO3127 and equivalent test method standards. It is widely used in scientific research institutions, testing laboratories, and production enterprises specializing in plastic pipes, serving as a core tool for determining pipe material impact toughness.
This testing instrument is ideal for the building materials industry and scientific research units engaged in conventional pipe material research and quality verification.
Key Features
- Anti-secondary impact mechanism for enhanced safety
- Automatic impact height measurement with real-time data display
- Compatible with both passage method and gradient method
- User-friendly operation with high safety performance
- Reliable stability during long-term operation
Testing Principle
Test specimens are subjected to impact forces from a falling striker with specified mass and shape, dropped from predetermined heights onto designated specimen positions. Test severity can be adjusted by modifying striker mass and/or drop height.
The maximum acceptable value for TIR is set at 10%.
Technical Specifications
| Parameter |
Specification |
| Model |
XJL-300D |
| Ambient Temperature |
10℃-35℃ |
| Drop Hammer Quality |
0.5kg-16kg |
| Hammer Diameter |
D25mm, D90mm, etc. |
| Height of the Fall |
10mm-2000mm, error ≤ ±2mm |
| Diameter of the Sample |
Φ16mm-Φ630mm |
| Deviation of Impact Center |
≤2mm |
| V-type Supporting |
120° |
| Power Source |
220VAC ±10% |
| Outline Dimension |
715mm × 700mm × 3900mm |
| Net Weight |
380kg |
Supported Materials
Compatible with PVC-U water supply pipes, sewage pipes, low-pressure water supply pipes, low-pressure delivery pipes, core layer foamed pipes, double-wall corrugated pipes, PE water supply pipes, and rigid plastic sheets.
Performance Specifications
- Testing Precision: 0.5%
- Maximum Testing Energy: 300J
- Precise drop energy measurement and real-time recording
- Single-person operation capability
- International testing standards compliance
Technical Support & Services
We provide comprehensive technical backing and after-sales services for Drop Hammer Test Equipment. Our professional engineering team offers guidance covering installation, routine maintenance, fault diagnosis, instrument calibration, and customized solutions for unique application requirements.
Our service team maintains 24/7 availability to respond to all inquiries and technical concerns.
Frequently Asked Questions
What defines Drop Hammer Test Equipment?
Professionally developed impact testing equipment manufactured by JHH in Beijing, China, designed to evaluate the impact resistant performance of various test samples.
What application goal does Drop Hammer Test Equipment serve?
This apparatus assesses specimen impact resistance to guarantee product quality and meet industry acceptance standards.
What testing objects are compatible with Drop Hammer Test Equipment?
Applicable to various pipe products including PVC-U and PE water supply pipes, sewage pipes, low-pressure pipes, core layer foamed pipes, double-wall corrugated pipes, and rigid plastic sheets.
What precision level does Drop Hammer Test Equipment achieve?
Features testing precision as high as 0.5%.
What is the maximum testing capacity of Drop Hammer Test Equipment?
Maximum testing energy capacity reaches 300J.
